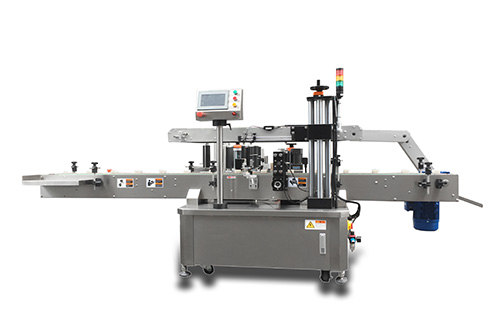

SRT-10 vertical single-sided three-sided four-sided labeling machine

Scope of application: single-sided, three-sided, four-sided labeling of various types of glass, plastic, metal, etc. (such as round bottles, flat bottles, square bottles, conical bottles, triangular bottles, polygonal bottles, etc.)

Process flow: feeding → differential splitting → synchronous correction → labeling → secondary smoothing → finished product → next process

Features introduction:

1. The labeling motor adopts Yaskawa servo motor and driver, which is high speed and precise.
2. Equipped with German Siemens programmable controller (PLC) and Pro-face touch screen, the operation is simple and fast.
3. One-piece split bottle calibration, synchronous upper pressure fastening, accurate labeling
4. Customized high-density brushed brush, high-elastic compression sponge, labeling without bubbles, no warping.
5. The main mechanism is made of SUS304 stainless steel and A6061 high-strength aluminum alloy, which conforms to GMP regulations.
6. Stepless speed regulation, all actions are synchronized, and the high and low speeds can be adjusted at will.
7. Function matching: turntable feed or side connection
Round bottle labeling mechanism
Batch printing system (hot stamping machine or HP inkjet printer)
Leak labeling, leak printing, unclear CCD image detection and rejection system
Germany SICK ultrasonic transparent label detection photoelectric

Other special features (such as QR code, barcode reading detection)

Labeling speed:	350 bottles / minute (depending on bottle type and label size and labeling method)
Labeling accuracy:	±0.5mm
Labeling object adaptation range:	Veneered as aspherical
Voltage power:	AC220V 50Hz 3.5KW
